Compact High Precision Micro-Dispensing System

Micro-Dispensing Instrument for excellent positioning accuracy and batch production.

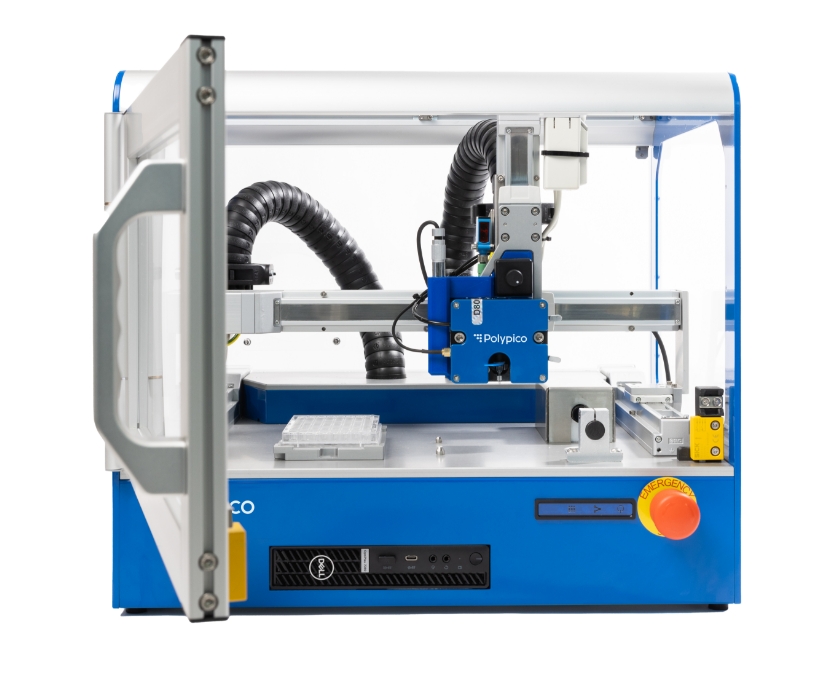

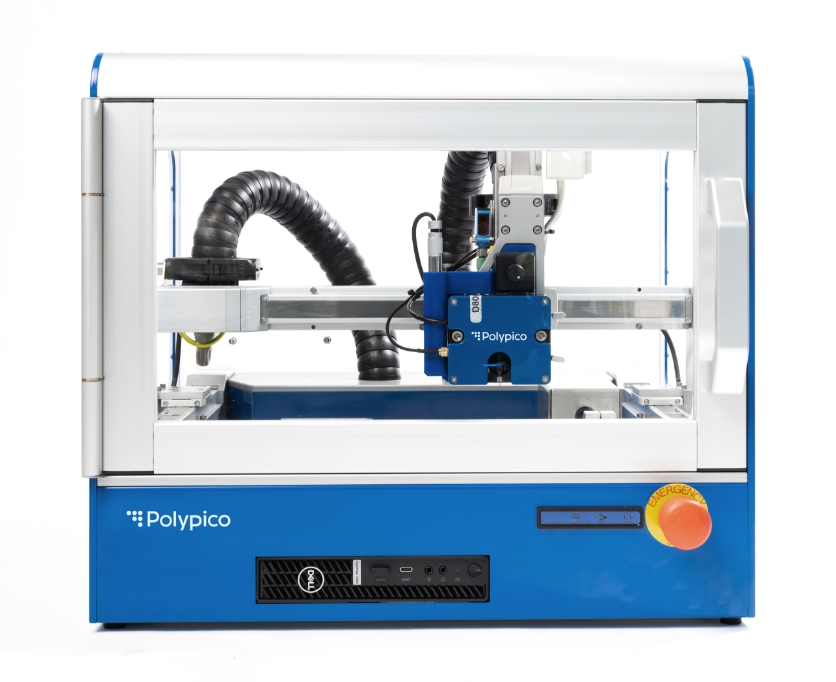

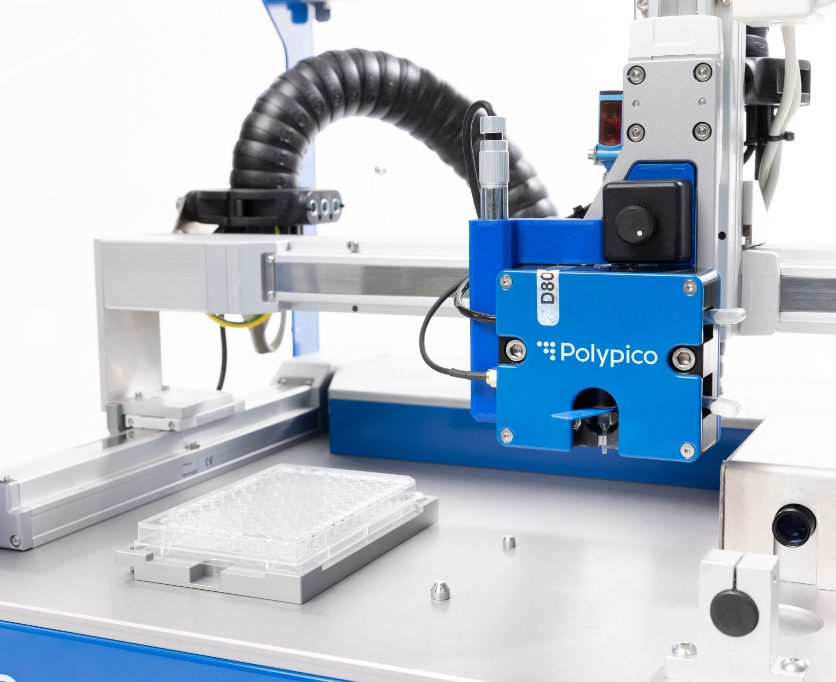

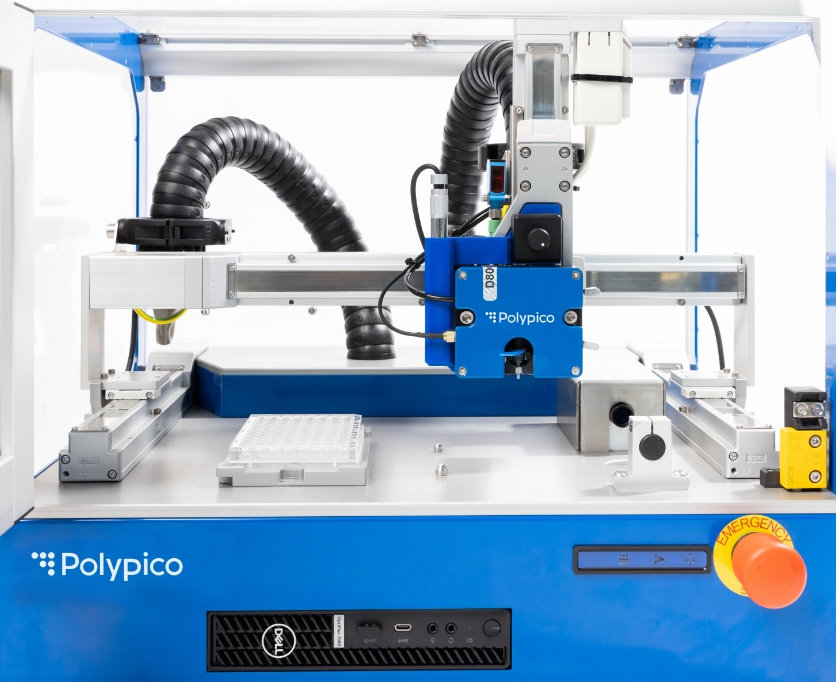

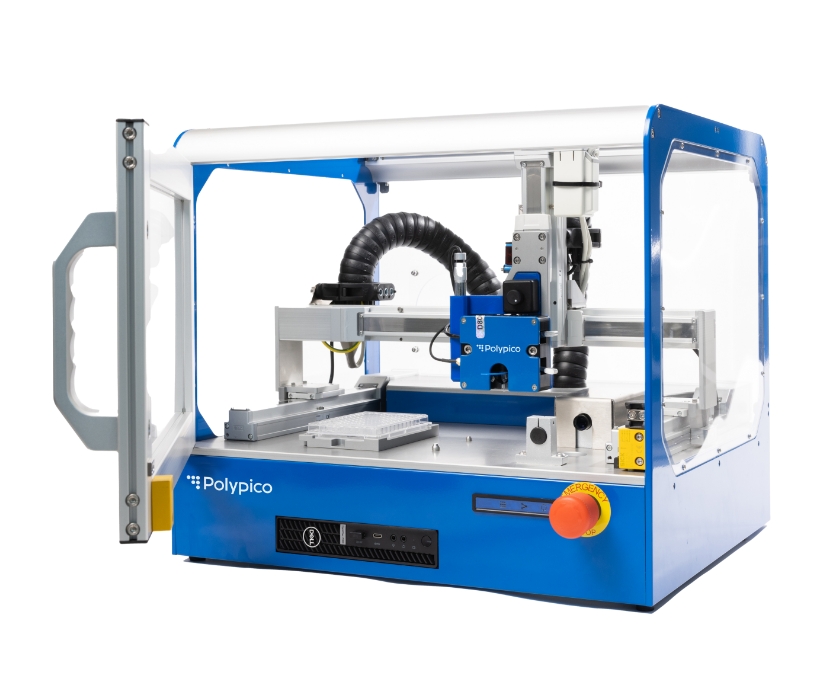

The Pico P is an ultra-high precision picoliter micro-dispensing instrument. Specifically designed to meet the demands of even the most challenging life science and industrial applications. Pico P can dispense droplets as small as 5 picoliters (pL) at speeds of up to 10,000 drops per second. Furthermore, the non-contact dispensing instrument is easy to use, simple to set up, and fully integrated with a dedicated computer, optionally with humidity, cooling or heating target area and dispensers, side view camera for quality control. In addition, the spotter features our patented disposable dispensing cartridge technology, which effectively prevents contamination and carry-over.

Download Brochure

Features & Benefits Specifications Applications & Materials

Features & Benefits

Patented disposable dispensing cartridge technology

There is no cross-contamination or carry-over. It is a matter of minutes to change the liquid samples. Additionally, the system ensures zero wastage of precious liquids, while the nozzle’s anti-clogging feature further enhances performance.

More about our disposable cartridges

High accuracy, precision and resolution

Microdispensing instruments with exceptional positioning accuracy, superior XY precision of +/- 6µm, and high resolution of 1µm for microarray and liquid handling applications.

Ultra-low volume dispensing

The total volume range of the droplet is between 5 picoliters (pl) to 120 picoliters (pl), depending on the properties of the fluids. By performing multiple dispensing actions at the same position, volumes in the nanoliter or low microliter range are being generated, enabling a spot on-the-fly mode.

Target alignment camera

Allowing precise point-and-shoot dispensing for simpler, fasted target alignment and inspection.

Exceptional dispensing speed

Maximum dispensing rate 10,000Hz (drops per second).

View Miniature Dispensing Head

Long Nose Dispensing Head

Heated Dispensing Head

Robust, durable build

Build from the highest quality components with a 10 year+ design life.

Out-of-the-box ready

Simple and easy to use micro dispensing system, ready to go out-of-the-box, in a compact benchtop footprint.

Customisable dispensing deck layout

The dispensing deck layout has 4 locating dowels allowing users to fit their target substrate holder.

Ongoing software upgrades

Keep up to date with the latest features and capabilities. (Optional).

1-year & extended warranties

Includes a 1-year parts and labour, return to factory warranty. Option to extend the warranty for 3 to 5-years also available.

Specifications

Robotics Accuracy

X,Y,Z resolution: 1µm
X and Y precision: +/- 6µm
Z precision +/- 20µm

Speed

120mm/s

Dimensions

530mm Length x 510mm Width x 470mm Height

Weight

30.37kg

Enclosed

Yes

Working Area

140mm x 190mm

Number of SBS well plate holders

Applications & Materials

The broad field of applications and variety of liquids include:

Microarrays

DNA / RNA

Sensor technology

Proteins / Antibodies

Living cells

Micro electro mechanical systems (MEMS)

Coatings

Nano-materials

Microneedles

Adhesives

View More Applications & Materials
