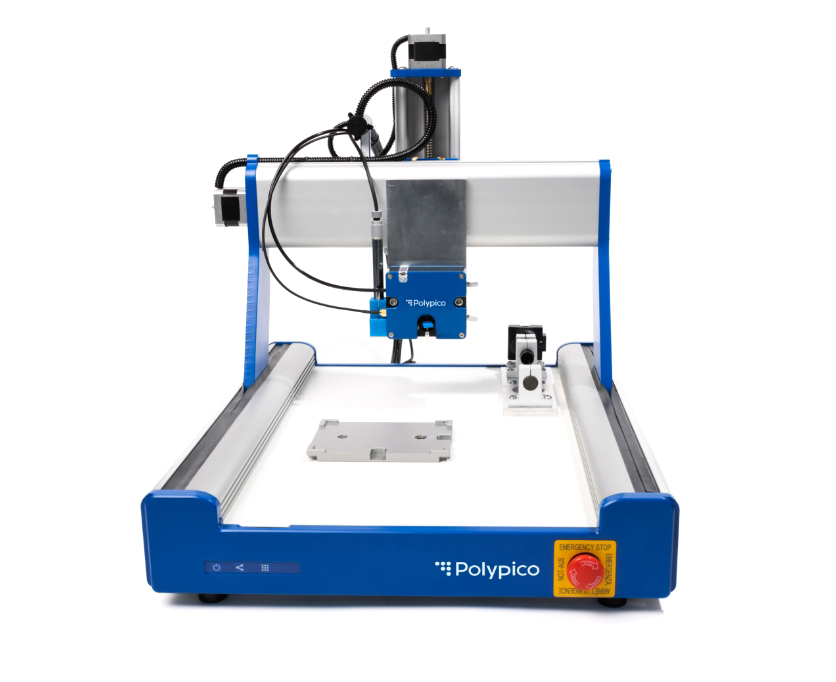

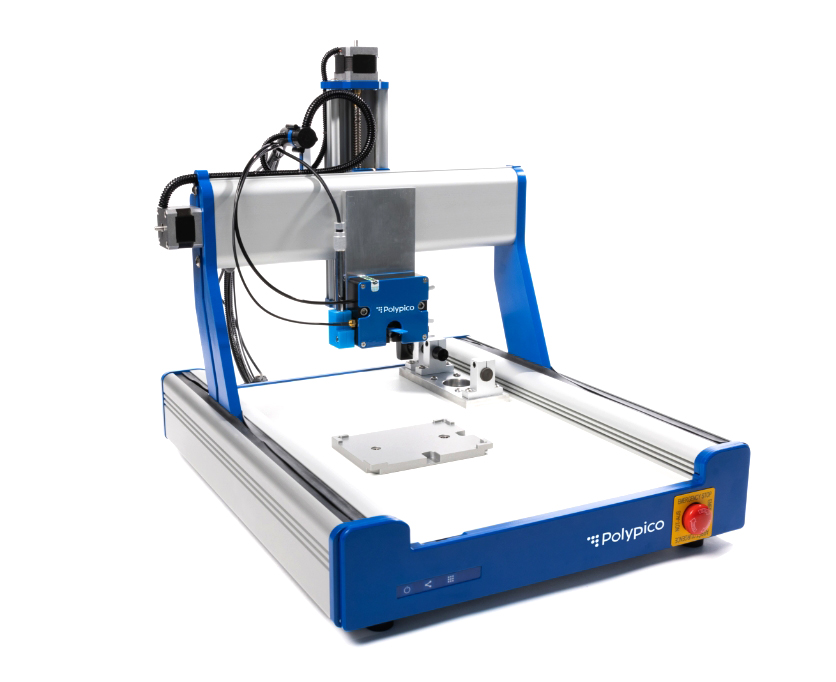

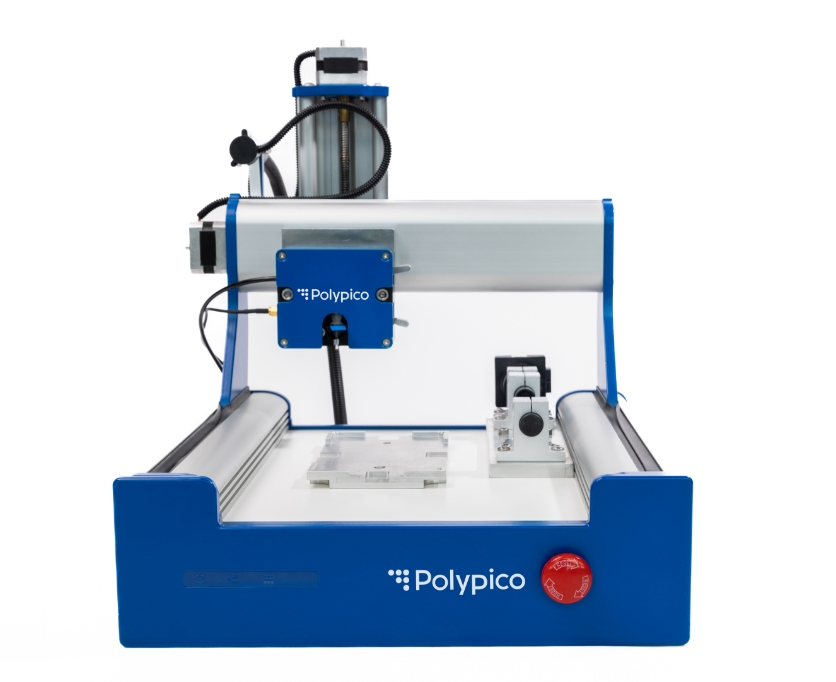

Compact entry-level picolitre dispensing instrument

Flexible non-contact ultra-low volume dispensing system for R&D.

The Pico E system is not only an automated, non-contact microdispensing instrument designed for ultra-low volume applications but also excels in dispensing a wide range of substances, including proteins, antibodies, DNA, living cells, radioactive isotopes, nanomaterials, and viscous solutions, among others. Furthermore, this open-access platform supports various target substrates, such as glass slides and microtiter plates (96-wells), nitrocellulose membranes or microneedles. The system can be equipped with all PolyPico microdispensers and is suitable for printing on any of the aforementioned targets. In terms of design, the Pico E system is compact, user-friendly, and highly flexible in its configuration, making it an outstanding entry-level option for academia and R&D. Additionally, it fits easily into most fume cupboards or laminar flow hoods, requires no specialist installation, and allows users to be operational within an hour.

Download Brochure

Features & Benefits Specifications Applications & Materials

Features & Benefits

Patented disposable dispensing cartridge technology

No cross-contamination and carry-over, change liquid samples in a matter of minutes, zero wastage of precious fluids, anti-clogging feature of the nozzle.

More about our disposable cartridges

Open-platform

An open-platform design ensures maximum flexibility in the system layout and functionality, featuring a specialized target substrate or source holder. According to your application, the platform can operate with or without a cooled environment.

Ultra-low volume dispensing

The total volume range of the droplet is between 5 picoliters (pl) to 120 picoliters (pl), depending on the properties of the fluids. By performing multiple dispensing actions at the same position, volumes in the nanoliter or low microliter range are being generated, enabling a spot on-the-fly mode.

Target alignment camera

Allowing precise point-and-shoot dispensing for simpler, fasted target alignment and inspection. (Optional).

Exceptional dispensing speed

Maximum dispensing rate 10,000Hz (drops per second).

Miniature Dispensing Head

Long Nose Dispensing Head

Heated Dispensing Head

Out-of-the-box ready

Simple and easy to use, ready to go out-of-the-box, in a compact benchtop footprint.

Ongoing software upgrades

Keep up to date with the latest features and capabilities. (Optional).

1-year & extended warranties

Includes a 1-year parts and labour, return to factory warranty. Option to extend the warranty for 3 to 5-years also available.

Specifications

Robotics Accuracy

X,Y,Z resolution: 1µm
X and Y precision: +/- 50µm
Z precision: +/- 100µm

Speed

20mm/s

Dimensions

Generation 1: 545 x 435 x 400mm
Generation 2: 552 x 440 x 510mm

Weight

15kg

Enclosed

Open access platform

Working Area

130mm x 350mm

Number of SBS well plate holders

1 as standard (up to 4 possible)

Applications & Materials

The broad field of applications and variety of liquids include:

Microarrays

Microfluidics

DNA / RNA

Proteins / Antibodies

Living cells

Sensors and Biosensors

Lab-on-a-chip

Microneedles

MEMS

Coatings

Adhesives

Nano-materials
